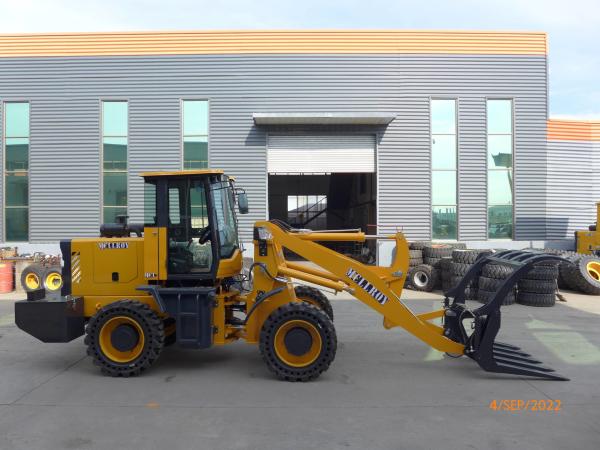

Operating Weight 2000kg 2500kg Mini Articulated Wheel Loader,Air Brake Articulated
1. Products Description of MCLLROY Wheel Loader
In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.
The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.
The flexibility and light operation mainly depends on the hydraulic system of the loader.
The low failure rate depends on quality as well as the after-sales service.
MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.
2. Specification of MCLLROY Wheel Loader
| MCL946G | Metric Units |
| Engine Model | Yunnei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6350 kg |
| Rated Load | 2200-2500 kg |
| Bucket Capacities | 1.4 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT
300 split torque converter |
| Axle | Large hub |
| Axle Base | 2600 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 10 s |
| Min. Ground Clearance | 370 mm |
| Wheel Base | 2100 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1180 mm |
| Overall Length - With Bucket | 6660 mm |
| Overall Width | 2300 mm |
| Overall Height | 3000 mm |
| Tyre Size | 16/70-24 |
| Joystick | Machanical |
| Min. turning radius | 5500 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Dual high and low speed gearboxes and handles for quick switching between work and travel modes.
2) The visual skylight design makes overhead shovelling and unloading operations more convenient.
3) The cab has a wide field of view, which facilitates work in all directions and safe walking.
4) Uses engineering tyres with a rubber content of over 38% .
4.Attachment of MCLLROY Wheel Loader
MCLLROY compact wheel loaders are wide variety of choices for many applications.On construction sites,in the recycling industry or agricultural works,with the hydraulic quick coupling and a wide range of attachments,the machine are extremely versatile.
MCLLROY wheel loader can be installed with different attachments to meet customers' work needs, as following:
