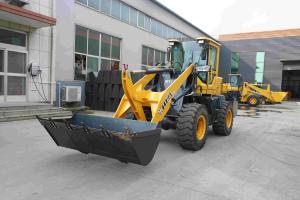

Construction Front Wheel Loader For Transporting Applications
1. Products Description of MCLLROY Wheel Loader
We need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.
MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification of MCLLROY Wheel Loader
| MCL948 | Metric Units |
| Engine Model | Weichai Deutz 6102 |
| RPM | 2400 |
| Rated Power | 92 kW |
| Emissions | EU Stage II |
| Operating Weight | 7660 kg |
| Rated Load | 2800-3000 kg |
| Bucket Capacities | 1.7 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT
315 split torque converter |
| Axle | 30 # |
| Axle Base | 2700 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 10 s |
| Min. Ground Clearance | 500 mm |
| Wheel Base | 2100 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1200 mm |
| Overall Length - With Bucket | 6750 mm |
| Overall Width | 2400 mm |
| Overall Height | 3150 mm |
| Tyre Size | 17.5-25 |
| Joystick | Mechanical |
| Min. turning radius | 4500 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) The cab has a wide field of view, which facilitates work in all directions and safe walking.
2) Uses engineering tyres with a rubber content of over 38% .
3) External distribution valve and removable fuel tank for easy servicing and maintenance.
4) Buckets are in accord with construction standard,which is suitable for heavy-duty work.
5) The upgraded side flip hood and the counterweight of the crimped model give a more attractive appearance.
6) The design of the tiger head base strengthens the dynamic arm to withstand the force.
7) Adjustable air-conditioning.
4.Why Choose MCLLROY Wheel Loader
We closely match the needs of customers with our specialty, balance the price and give
customers the best quality product possible.
Our motto is that:
At the same price, we strive to offer the best quality.
Under the same configuration, we strive for the lowest price.
We believe that with our professionalism, quality, price and service we will
achieve a win-win cooperation with you !
QXM Issued.
