Axle Base 2220 Mm Compact Wheel Loader, Emissions EU Stage II Small
1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MODEL | MCL 936 |
| ENGINE | Engine Model | Yun Nei 4100 Supercharged |
| RPM | 2400 |
| Rated Power | 65 kW |
| Emissions | EU Stage II |
| WEIGHTS | Operating Weight | 4880 kg |
| Rated Load | 2500 kg |
| BUCKETS | Bucket Capacities | 1.1 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT
280 torque converter |
| Axle | Middle hub |
| Axle Base | 2220 mm |
| Brake | Disc Brake |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 410 mm |
| Wheel Base | 1510 mm |
| Reach at Max.Dump Height | 3450 mm |
| Dump Reach | 600 mm |
| Overall Length - With Bucket | 5600 mm |
| Overall Width | 2060 mm |
| Overall Height | 2860 mm |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:High Efficiency and energy conservation patented dual-pump confluence technology .
5) Tire:38% Rubber content tire,Wider off-road tire
6) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
7) Cab:
I. Radio.
II. Air conditioner.
III. Central electrical control box for easier servicing.
VI. Hydraulic brake system gas cap,caliper disc brake.
8) Gull-wing Engine Doors make access and daily maintenance easy.
4.Production lines:

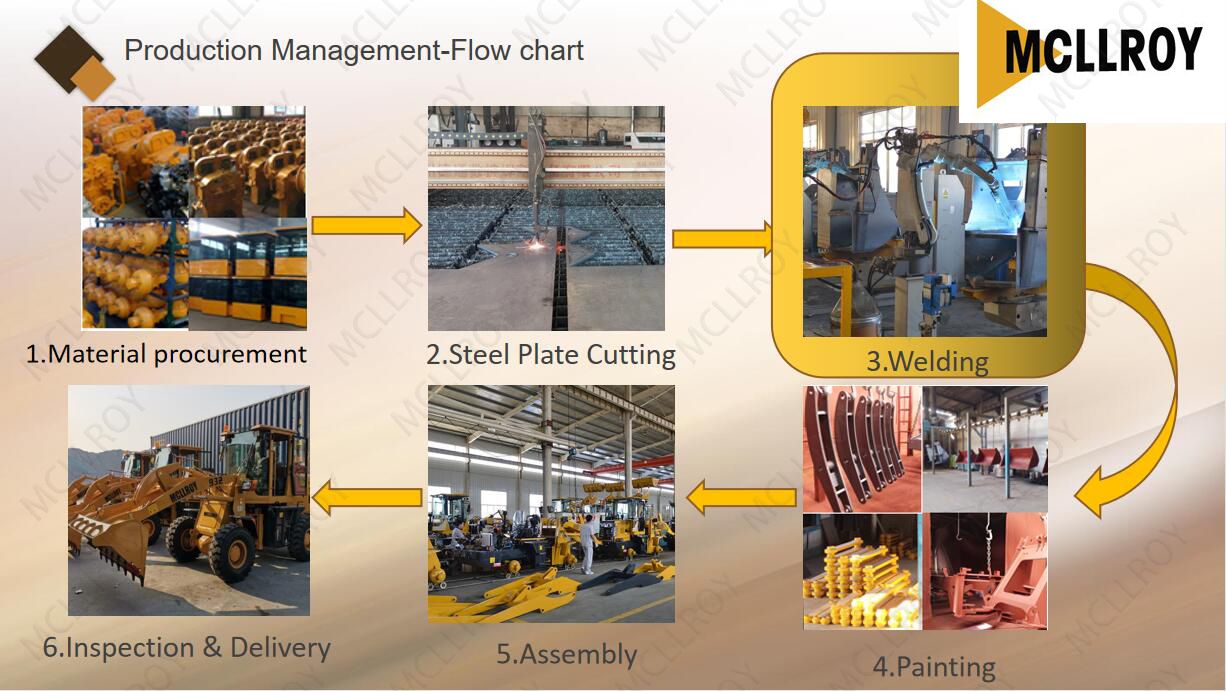

A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Welding:
Manual welding requires experienced workers, and the finished product is more likely to have variation in quality. If the welding robot is well adjusted, the quality will be more stable than manual welding. Our company now uses robot welding, there are currently 10 in total.
Good welding is done at once, so there will not be seam greater than 1mm. And fair welding will have break point. Whereas bad welding makes the seam too wide, they have to stuff iron in the side the seam and weld another layer outside. It is hard to tell from the appearance, but the integrity and strength of the finish product is totally different. You can tell the difference between the welding of our company and other company from the pictures here. (other has break point)
