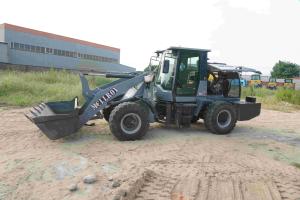

0.2 M³ Bucket Capacity Mini Front End Wheel Loader,Option Articulated Front Loader
1. Products Description of MCLLROY Wheel Loader
When it comes to construction equipment, it is imperative that it is capable of handling heavy-duty workloads with optimal efficiency. Take the example of a loader - the bucket should have a high capacity for shoveling material, while the loader itself should remain stable during operation. The controls should be flexible, user-friendly, and easy to use, and the equipment should have a low malfunction rate.
The MCLLROY Wheel Loader is a front-wheel loader with a single bucket, articulated structure, and hydraulic unloading capabilities. It has been meticulously designed and developed in line with the specific requirements of users, while also taking into consideration reference models that incorporate advanced structural features and technologies from both domestic and international markets.
2.Specification
| MCL918D | Metric Units |
| Engine Model | Yun Nei 490 |
| RPM | 2400 |
| Rated Power | 42 kW |
| Emissions | EU Stage II |
| Operating Weight | 2500 kg |
| Rated Load | 800 kg |
| Bucket Capacities | 0.2 m³ |
| Max. Travel Speed | 40-45 km/h |
| Gear Box | 240 Integral Torque Converter |
| Axle | 130 Heavy Duty |
| Axle Base | 1800 mm |
| Brake | Drum Brake |
| Hydraulic Cycle time - lift | ≤ 6 s |
| Min. Ground Clearance | 300 mm |
| Wheel Base | 1300 mm |
| Reach at Max.Dump Height | 2800 mm |
| Dump Reach | 870 mm |
| Overall Length - With Bucket | 4700 mm |
| Overall Width | 1600 mm |
| Overall Height | 2480 mm |
| Tyre Size | 7.50-16 |
| Breakout Force | 40 KN |
| Joystick | Mechanical |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) The cab has a wide field of view, which facilitates work in all directions and safe walking.
2) Uses engineering tyres with a rubber content of over 38% .
3) External distribution valve and removable fuel tank for easy servicing and maintenance.
4) Buckets are in accord with construction standard,which is suitable for heavy-duty work.
5) The upgraded side flip hood and the counterweight of the crimped model give a more attractive appearance.
6) The design of the tiger head base strengthens the dynamic arm to withstand the force.
4.Attachment of MCLLROY Wheel Loader
The MCLLROY compact wheel loader is available with an optional quick hitch, which enables users to quickly switch between a vast selection of attachments, such as hay grapples, grass forks, wood forks, timber grapples, pallet forks, bale grapples, four-in-one buckets, straight snow blades, and numerous others. This feature significantly enhances the machine's flexibility and versatility, making it an indispensable asset for a wide range of applications, including construction sites, recycling facilities, and agricultural work.
