Front Head Loader Wheel Loader Strict Standard Inspection Process Ensuring The Quality
1. Products Description
We need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

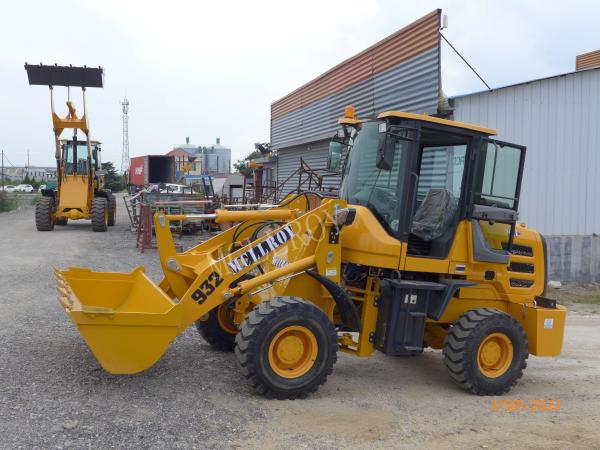

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| MODEL | MCL 932/ZL 932 | Metric Units |
| ENGINE | Engine Model | Yun Nei 490 Supercharged |
| RPM | 2400 |
| Rated Power | 58 kW |
| Emissions | EU Stage II |
| WEIGHTS | Operating Weight | 3670 kg |
| Rated Load | 1800 kg |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT
265 torque converter |
| Axle | Small hub |
| Axle Base | 2210 mm |
| Brake | Disc Brake |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm |
| Reach at Max.Dump Height | 3200 mm |
| Dump Reach | ≤ 650 mm |
| Overall Length - With Bucket | 5300 mm |
| Overall Width | 1820 mm |
| Overall Height | 2670 mm |
| OPERATING SPECIFICATIONS | Tyre Size | 20.5-16 |
| Breakout Force | 40 KN |
| Joystick | Machanical |
| Min. turning radius | ≤ 7000 mm |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes |
| Dual Hight&Low Speed Handle | Yes |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option |
| Multifunctional Attachment | Option |
| Hydraulic Pilot | Option |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:High Efficiency and energy conservation patented dual-pump confluence technology .
5) Tire:38% Rubber content tire,Wider off-road tire
6) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
7) Cab:
I. Radio.
II. Air conditioner.
III. Central electrical control box for easier servicing.
VI. Hydraulic brake system gas cap,caliper disc brake.
8) Gull-wing Engine Doors make access and daily maintenance easy.
4. Inspection
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts, track width ,dashboard and electrical system , MCLLROY technicians usually need to inspect the followings(Parts III) :
1) Do the road test for 3 to 6km. If the water temperature is below 100 deg celcius after the road test, that is qualified, otherwise, technician will check where the problem is.
2) And then check if the lubricant oil pressure is normal;
3) Use thermometer to test the temperature of gearbox and hydraulic oil.
4) Touch the air pump by hand;
5) Check for abnormal noise, oil leakage.
6) Do the brake performance test :drive the loader on a 45-degree slope, step on the brake and do not let go, it's okay if the loader does not move.
