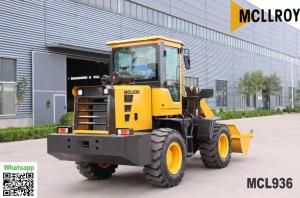

Articulated Frame Construction Engineering Wheel Loader, CVT Gear Box Compact shovel Wheel Loader
1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MCL 936 |
| Engine Model | Yun Nei 4100 Supercharged |
| RPM | 2400 |
| Rated Power | 65 kW |
| Emissions | EU Stage II |
| Operating Weight | 4880 kg |
| Rated Load | 2500 kg |
| Bucket Capacities | 1.1 m³ |
| Max. Travel Speed | 28 km/h |
| Gear Box | CVT
280 torque converter |
| Alex | Middle hub |
| Axle Base | 2220 mm |
| Brake | Disc Brake |
| Hydraulic Cycle time - lift | ≤ 6 s |
| Min. Ground Clearance | 410 mm |
| Wheel Base | 1510 mm |
| Reach at Max.Dump Height | 3450 mm |
| Dump Reach | 600 mm |
| Overall Length - With Bucket | 5600 mm |
| Overall Width | 2060 mm |
| Overall Height | 2860 mm |
| Tyre Size | 1670-20 |
| Breakout Force | ≥ 50 KN |
| Joystick | Machanical |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
3) Cab:Optional ROPS/FOPS cab :flame retardant materials and EU-certified glass are used in the cab, offering higher safety.
4) Complete safety signs.
5) Large steps on the side of the frame also enhance accessibility.

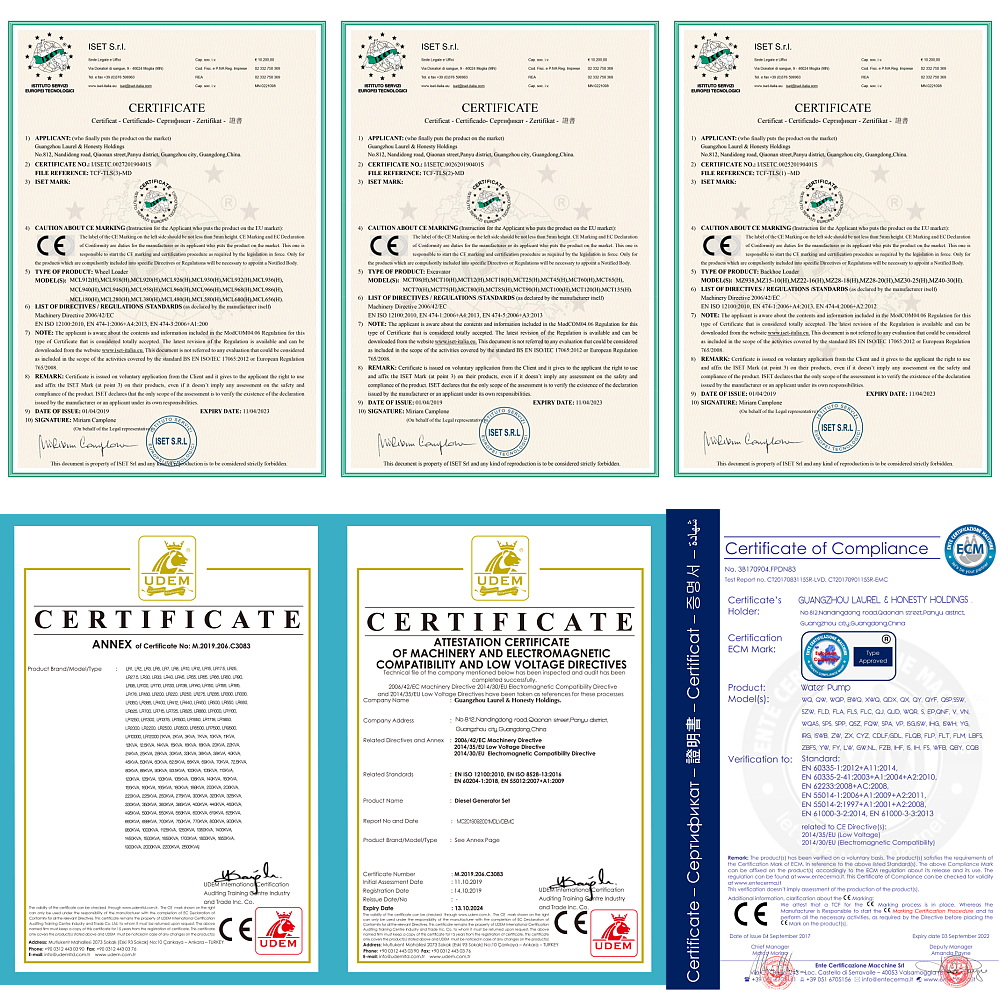

4.Certification
Product quality determines customer satisfaction thus the life span of a company.
MCLLROY not only acknowledged by the ISO9001:2000 international quality control system
and ISO 9001:2015 quality management system certification,but acquired the CE certificate.
MCLLROY CE certificate is for wheel loader, backhoe loader,excavator ,mixer truck .etc.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
