Enhanced Effiency Diesel Off-Road Forklift Truck Maximum Permissible Gradient 20 °
1. Products Description
What is a Rough Terrain Forklift?
The term “rough terrain” or “all-terrain” forklift trucks are specifically designed for one purpose; to work outdoors on uneven surfaces. Rough terrain forklifts are used within industrial sites where uneven surfaces can exist, or building sites when offloading bricks on dry or wet conditions. They shine wherein an ordinary conventional forklift cannot move.
MCLLROY Rough Terrain Forklifts have unique performance in the material handling solutions market. Their reliability is recognized by the most demanding professionals throughout the world. Would you like to buy or rent a MCLLROY rough-terrain forklift truck? Your dealer will respond to your needs as soon as possible. Contact our professionals at any time to benefit from our personalized services.
2. Specification
| Specification | FD30T - 2WD |
| Rate Loading Weight | 3000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Hydraulic auto 1R,0,1F |
| Fork Size | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 12-16.5-14PR |
| Rear Tire | 27x10-12-12PR |
| Overhead Guard Height | 2210 mm |
| Overall Length(without fork) | 2940 mm |
| Overall Width | 1550 mm |
3. Details and Advantages

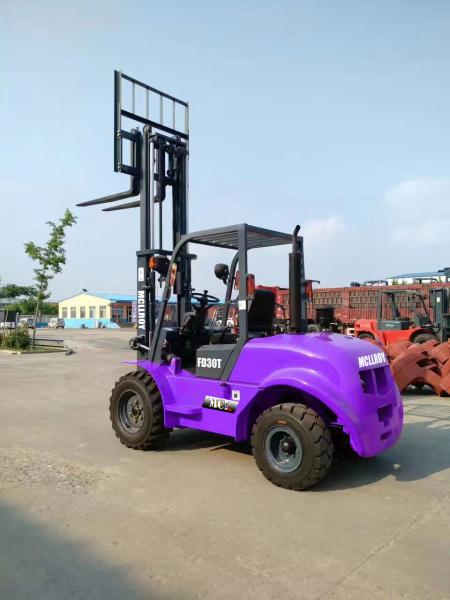

TheMCLLROY’S FD30T-2/4 rough-terrain forklift is a material handling truck designed for difficult terrain.
It is designed for the construction, timber and mining sectors, where rough-terrain capabilities are essential.
With a ground clearance of 38 cm and a 50 hp engine, it ensures power and a good ability to overcome obstacles.
Spacious and comfortable, the cab offers simple and intuitive controls.
The monobloc frame and mast attachment contributes to an exceptional service life and improves the resale value of the machine.
Maintenance is facilitated by quick access to essential components.
4. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
| No | Part No | Description |
| 26 | FD30(35)-L1023 | Pin |
| 27 | FD30(35)-L1024 | StrutL.H |
| 28 | FD30(35)-L1025 | Spring |
| 29 | FD30(35)-L1026 | Rod |
| 30 | FD30(35)-L1027 | Pin |
| 31 | FD30(35)-L1028 | Washer,spring |
